A mobile workforce application for commercial and residential field service organizations. TechPro has two primary components:
- Web Admin Site: This provides the ability to set up users and options for the mobile app, as well as monitor checkout and error logs.
- TechPro App: The app is used by technicians on smartphones and tablets.
Technology
The minimum recommendations are as follows:
| Web Admin Site | TechPro App | |
| Development tools |
Visual Studio Angular SQL Server |
Visual Studio Angular Framework Ionic Cordova |
| Compiled code |
Web Services behind it .NET Framework C# Web Services, standard technology Web Admin Site is Angular |
Web Services behind it .NET Framework C# Web Services, standard technology Data Entry is Ionic Cordova |
| Hardware requirements |
If deployed on premise: Windows Server SQL Server 2016 or greater Storage: At a minimum RAID 3 with 7200 RPM drives for SQL Server. We recommend 8 GB of RAM minimum on the server, but you may need more depending on the number of technicians using the app and the other products using the server. |
Smartphones and Tablets iOS, Android Storage: The app is around 40-50 MB installed. Storage usage will depend on work orders, inventory, images, and other data synced to the device. Recommend 16 GB minimum. |
|
Browser/operating systems supported We follow the currently supported versions of the browser and operating systems. As a practice, we test for compatibility on the newest releases available at the time of the TechPro release. If we find any incompatibility issues between releases, we will contact customers via email. |
Chrome Edge: Version 80 minimum Firefox Safari |
Android: Version 12 or greater https://www.androidupdatetracker.com https://endoflife.date/android iOS: Version 15 or greater https://support.apple.com/en-us/HT201222 Windows: Version 10 or greater |
Other Technologies
| Reports | TechPro uses Microsoft SSRS for the reports created during the checkout process. |
| Web API |
The intermediate language is used to tie multiple data sources into one common set of services. This is also used to pass the authentication from the ERP to the Web Admin Site. |
|
Authentication protocol |
OAuth 2.0 |
|
Dynamics GP with WennSoft Signature |
The ERP that TechPro integrates with. |
|
SSL Certificate |
This is used to enable websites to move from HTTP to HTTPS, for better security. |
Deployment
| Web Admin Site | TechPro |
|
Windows Installer |
iOS Downloaded via the App store for iOS. Android Downloaded via the Google Play store for Android. |
Learning

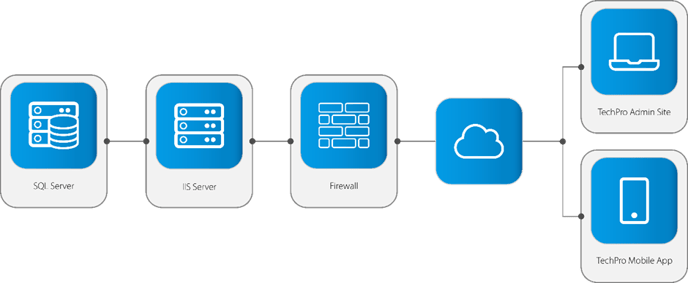

On-Premises Diagram
