Assigning Data to a Barcode on a Report

How to assign data to a barcode on a report

Complete the following steps to assign data to a barcode:

  1. Using the Report Designer, click on the barcode that was added to the report to open its properties.
  2. Click the f next to the Text field.
  3. Select Text Expression to open the Expression Editor window.

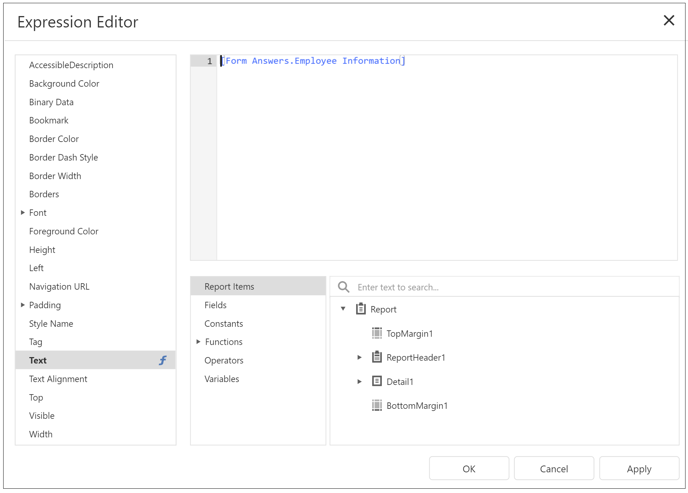

  4. Select Fields, then double-click on the field you want to use for the barcode, as shown in the following illustration:
  5. Click OK. Then save the report.

Note: If using DocLink, you may need to put ! around the barcode data so that it looks like this: '!'+ [Bar Code Test Field)] +'!'
